Spline size: | 25T Spline |
Servo Technology: | Digital High Voltage |
Servo Case: | Full Aluminum Case |
Input Voltage (V): | 6.0V – 8.4V |
Motor Type: | Brushless Motor |
Gear Material: | Steel Gears |
Ball Beared: | Ball Beared |
Length (mm): | 40.3 mm |
Width (mm): | 20.2 mm |
Height (mm): | 38.7 mm |
Weight (g): | 81 g |
Speed 60°/Sec @ 6.0V: | 0.085 sec/60 deg |
Speed 60°/Sec @ 7.4V: | 0.07sec/60 deg |
Torque kg/cm @ 6.0V: | 22.0kg/305.5oz-in |
Torque kg/cm @ 7.4V: | 31.0kg/430.5oz-in |
Torque kg/cm @ 8.4V: | 45.0kg/624.9oz-in |
Connector type: | JR |

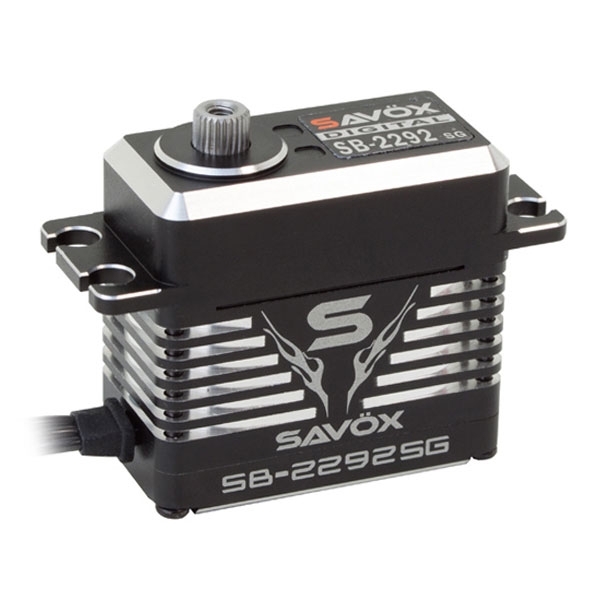

Savox SB-2292SG Digital 0.07 speed 31kg/t Servo
$189.00
Available on back-order
or 4 payments of $47.25 with Wizit learn more
