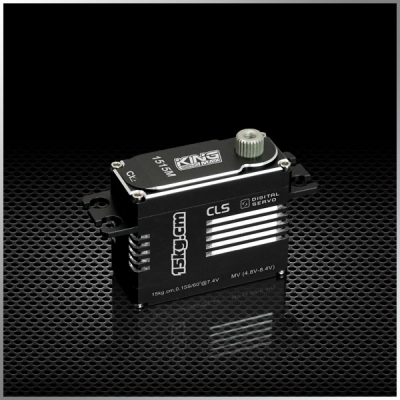

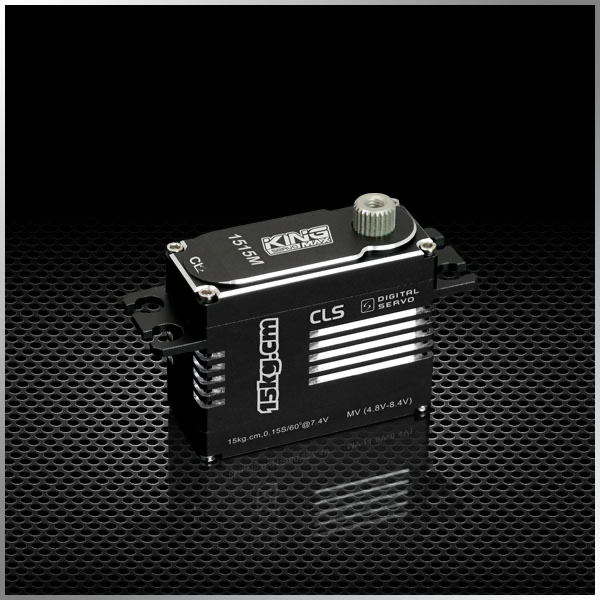

KINGMAX CLS1515M SERVO

FEATURE:

— High performance, digital Multivoltage mini servo

— Patent gear chain design,more stable and durable

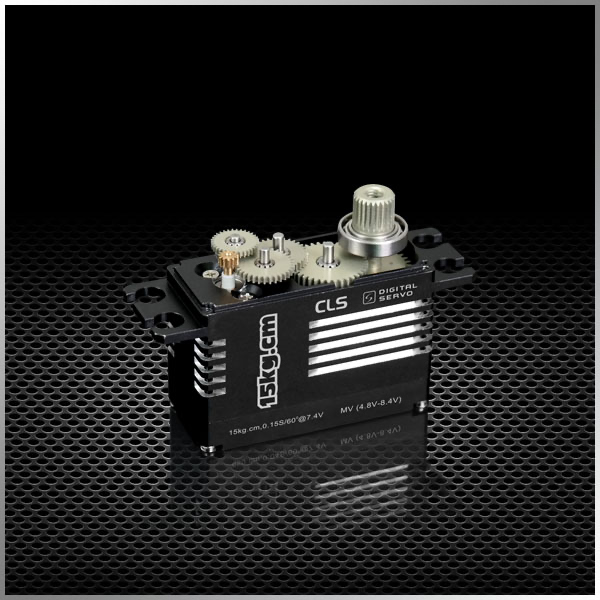

— High-precision metal gears with hard anodizing

— Full CNC aluminium hulls and structure

— High quality coreless motor

— Dual ball bearings

SPECIFICATIONS:

Operating Speed (5.0V): 0.24sec/60 degrees

Operating Speed (6.0V): 0.20sec/60 degrees

Operating Speed (7.4V): 0.15sec/60 degrees

Operating Speed (8.4V): 0.14sec/60 degrees

Stall Torque (5.0V): 8.7kg.cm (120.84oz/in)

Stall Torque (6.0V): 10.5kg.cm (145.84oz/in)

Stall Torque (7.4V): 15.0kg.cm (208.35oz/in)

Stall Torque (8.4V): 17.0kg.cm (236.13oz/in)

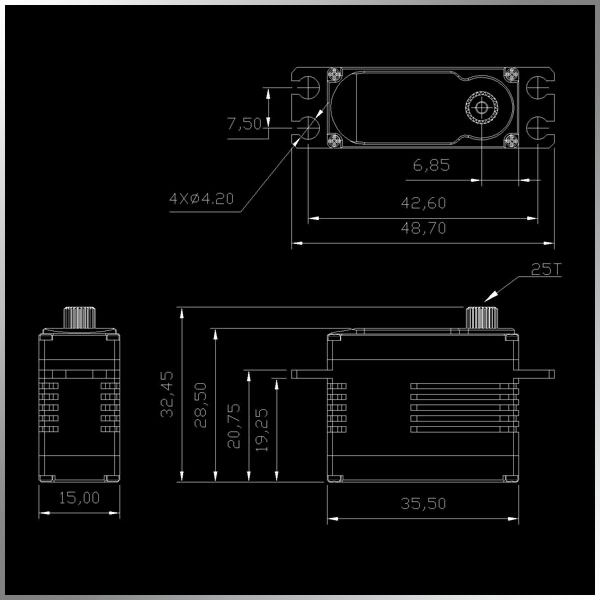

Dimensions: 35.5*15*28.5mm /1.38*0.58*1.11in

Weight: 34g(1.2oz)

Connector Wire Length: JR265 mm (10.33in)
