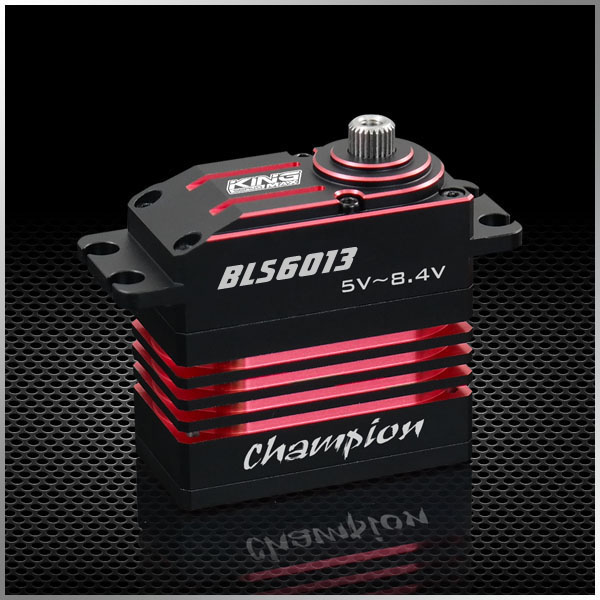

BLS6013–85g 60kg.cm,digital,steel gear standard servos

SKU: BLS6013 Category: Tag:

$149.00

Out of stock

tem: BLS6013
Gear: Steel gear
Spline: 25T
Motor: Brushless motor
Bearing: 2BB
Dead band: 2μs default
Waterproof: Yes
Operating Voltage: DC5.0~8.4V
Working frequence: 1520μs/330hz

FEATURE:

— High performance, digital standard servo

— High-precision steel gears

— Full CNC aluminium hulls and structure

— High quality brushless motor

— Dual ball bearings

— Waterproof

SPECIFICATIONS:

Operating Speed (5.0V): 0.20sec/60 degrees

Operating Speed (6.0V): 0.17sec/60 degrees

Operating Speed (7.4V): 0.13sec/60 degrees

Operating Speed (8.4V): 0.12sec/60 degrees

Stall Torque (5.0V): 41.0kg.cm (569.49oz/in)

Stall Torque (6.0V): 51.0kg.cm (708.39oz/in)

Stall Torque (7.4V): 60.0kg.cm (833.40oz/in)

Stall Torque (8.4V): 67.0kg.cm (930.63oz/in)

Dimensions: 40X20X39.1mm /1.57X0.79X1.52 in

Weight: 85g (2.99oz)

Connector Wire Length: JR310 mm (12.09in)
